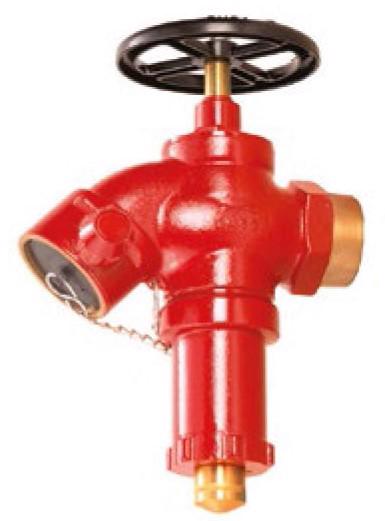

1.Product introduction of Oblique Landing Valves Oblique landing valves are suitable for installation on wet risers in a building for fire fighting purposes with permanently charged water from a pressurised supply. The landing valves are oblique type with flanged inlet and are manufactured to comply to BS 5041 Part 1 standard with delivery hose connection and blank cap complying with BS 336:2010 standard. The landing valves are classified under low pressure and are suitable for use at nominal inlet pressure up to 15 bar. 2.Product Parameter Code No. HY001-006C-00 Body Material Copper Alloy Inlet 2.5”BSP male thread Outlet 2.5”BS 336 Female coupling with plastic cap & chain Pressure Rating Low Pressure Valve Test pressure Valve Seat Test at 16.5 Bar • Body Test at 22.5 Bar Water Flow Rate 8.5 L/S @ 4 Bar Outlet Pressure 3.Products Features Body material made of copper alloy Hand wheel material made of grey cast iron Blank cap material made of copper alloy Possible to replace the gland seal when under pressure with the valve fully closed Disc facing rubber is of replaceable type Valves are provided with a strap and pad lock so that the hand wheel can be secured to counter unauthorized use The hand wheel is BLACK painted and body to RED AddThis Sharing Buttons Share to Facebook Share to TwitterShare to LinkedInShare to PinterestShare to More High Pressure Regulating Landing Valve 1. Product introduction The Pressure Regulating Fire Hydrant Valves are manufactured to BS5041 Part 1 from LG2 BS 1400 gunmetal ensuring durability and compatability in harsh environments making these PRV’s perfectly suited to both on-shore and off-shore marine applications. The PRV has a 2½”... Send InquiryChat Now Description
